stk::SwitchStrategyRoundRobin Class Reference

Round-Robin task-switching strategy: each runnable task receives one time slice (one tick interval) in turn before the kernel moves to the next task. More...

#include <stk_strategy_rrobin.h>

Inheritance diagram for stk::SwitchStrategyRoundRobin:

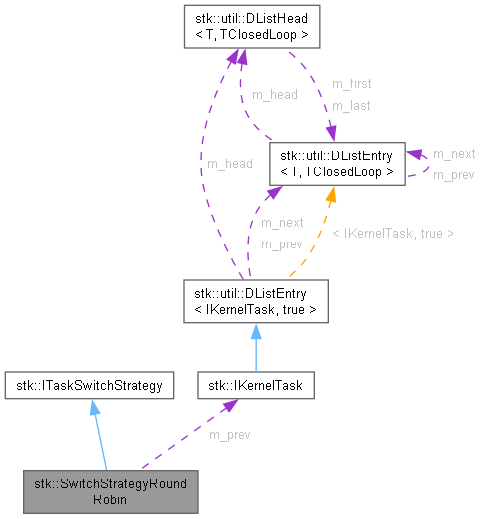

Collaboration diagram for stk::SwitchStrategyRoundRobin:

Public Types
enum	EConfig {   WEIGHT_API = 0 ,   SLEEP_EVENT_API = 1 ,   DEADLINE_MISSED_API = 0 ,   PRIORITY_INHERITANCE_API = 0 }
	Compile-time capability flags reported to the kernel. More...

Public Member Functions
	SwitchStrategyRoundRobin ()
	Construct an empty strategy with no tasks and a null cursor.
STK_VIRT_DTOR	~SwitchStrategyRoundRobin ()=default
	Destructor.
void	AddTask (IKernelTask *task) override
	Add task to the runnable set.
void	RemoveTask (IKernelTask *task) override
	Remove task from whichever list it currently occupies.
IKernelTask *	GetNext () override
	Advance cursor and return the next runnable task.
IKernelTask *	GetFirst () override
	Get first task in the managed set (used by the kernel for initial scheduling).
size_t	GetSize () const override
	Get total number of tasks managed by this strategy.
void	OnTaskSleep (IKernelTask *task) override
	Notification that a task has entered the sleeping state.
void	OnTaskWake (IKernelTask *task) override
	Notification that a task has become runnable again.
virtual bool	OnTaskDeadlineMissed (IKernelTask *task)
	Notification that a task has exceeded its HRT deadline; returns whether the strategy can recover without a hard fault.
virtual void	OnTaskWeightChange (IKernelTask *task, Weight old_weight)
	Notification that a runnable task's scheduling weight has changed.

Protected Member Functions
	STK_NONCOPYABLE_CLASS (SwitchStrategyRoundRobin)
void	AddActive (IKernelTask *task)
	Append a task to m_tasks and restore the cursor if necessary.
void	RemoveActive (IKernelTask *task)
	Remove a task from m_tasks and update the cursor.

Protected Attributes
IKernelTask::ListHeadType	m_tasks
	Runnable tasks eligible for scheduling.
IKernelTask::ListHeadType	m_sleep
	Sleeping (blocked) tasks not eligible for scheduling.
IKernelTask *	m_prev
	Iterator cursor: the most recently scheduled task, or nullptr when no runnable tasks exist. GetNext() advances from this position.

Detailed Description

Round-Robin task-switching strategy: each runnable task receives one time slice (one tick interval) in turn before the kernel moves to the next task.

Internally maintains two intrusive lists:

• m_tasks — tasks currently eligible for scheduling (runnable).
• m_sleep — tasks that called Sleep() or are otherwise blocked.

The iterator cursor (m_prev) points to the most recently scheduled task. On each call to GetNext() the cursor advances by one position in m_tasks, wrapping around at the end (closed-loop list). When m_tasks is empty, GetNext() returns nullptr and the kernel transitions to the sleep trap.

Note

All runnable tasks receive equal CPU time regardless of creation order or any other factor. There is no priority or weight mechanism in this strategy (WEIGHT_API = 0).

Requires the kernel Sleep API (SLEEP_EVENT_API = 1): the kernel must call OnTaskSleep() and OnTaskWake() when a task's sleep state changes.

See also

SwitchStrategyRR, ITaskSwitchStrategy

Definition at line 41 of file stk_strategy_rrobin.h.

Member Enumeration Documentation

EConfig

enum stk::SwitchStrategyRoundRobin::EConfig

Compile-time capability flags reported to the kernel.

Enumerator
WEIGHT_API	This strategy does not use per-task weights; all tasks are treated equally.
SLEEP_EVENT_API	This strategy requires OnTaskSleep() / OnTaskWake() events to maintain the active/sleep list split.
DEADLINE_MISSED_API	This strategy does not use OnTaskDeadlineMissed() events.
PRIORITY_INHERITANCE_API	This strategy does not require Priority Inheritance and OnTaskPriorityChange() events.

Definition at line 47 of file stk_strategy_rrobin.h.

    {
        WEIGHT_API               = 0,
        SLEEP_EVENT_API          = 1,
        DEADLINE_MISSED_API      = 0,
        PRIORITY_INHERITANCE_API = 0
    };

Constructor & Destructor Documentation

SwitchStrategyRoundRobin()

stk::SwitchStrategyRoundRobin::SwitchStrategyRoundRobin ( )

inline

Construct an empty strategy with no tasks and a null cursor.

Definition at line 57 of file stk_strategy_rrobin.h.

                               : m_tasks(), m_sleep(), m_prev(nullptr)
    {}

References m_prev, m_sleep, and m_tasks.

Referenced by STK_NONCOPYABLE_CLASS().

Here is the caller graph for this function:

~SwitchStrategyRoundRobin()

STK_VIRT_DTOR stk::SwitchStrategyRoundRobin::~SwitchStrategyRoundRobin ( )

default

Destructor.

Note

MISRA deviation: [STK-DEV-005] Rule 10-3-2.

References STK_VIRT_DTOR.

Member Function Documentation

AddActive()

void stk::SwitchStrategyRoundRobin::AddActive ( IKernelTask * task )

inlineprotected

Append a task to m_tasks and restore the cursor if necessary.

Parameters

[in]

task

Task to make runnable.

Note

Cursor invariant: if m_prev is nullptr (all tasks were previously sleeping), it is set to the newly added task so GetNext() immediately returns a valid task on the next call rather than returning nullptr and causing a spurious sleep cycle.

Definition at line 193 of file stk_strategy_rrobin.h.

    {
        m_tasks.LinkBack(task);

        // update pointer: if all tasks were sleeping, this task will change state
        // of the kernel to active
        if (m_prev == nullptr)
        {
            m_prev = task;
        }
    }

References m_prev, and m_tasks.

Referenced by OnTaskWake().

Here is the caller graph for this function:

AddTask()

void stk::SwitchStrategyRoundRobin::AddTask ( IKernelTask * task )

inlineoverridevirtual

Add task to the runnable set.

Parameters

[in]

task

Task to add. Must not be nullptr and must not already be in any list.

Note

The task is appended to the back of m_tasks.

Cursor invariant: if m_prev was already pointing at the tail before insertion, it is advanced to the new tail so that GetNext() will return the new task on its next iteration rather than skipping it.

Implements stk::ITaskSwitchStrategy.

Definition at line 72 of file stk_strategy_rrobin.h.

    {
        STK_ASSERT(task != nullptr);
        STK_ASSERT(task->GetHead() == nullptr);

        const bool tail = (m_prev == m_tasks.GetLast());

        m_tasks.LinkBack(task);

        // if pointer was pointing to the tail, become a tail
        if (tail)
        {
            m_prev = task;
        }
    }

References stk::util::DListEntry< T, TClosedLoop >::GetHead(), m_prev, m_tasks, and STK_ASSERT.

Here is the call graph for this function:

GetFirst()

IKernelTask * stk::SwitchStrategyRoundRobin::GetFirst ( )

inlineoverridevirtual

Get first task in the managed set (used by the kernel for initial scheduling).

Returns

The first task in m_tasks if any task is runnable; otherwise the first task in m_sleep. Asserts if the combined set is empty (GetSize() == 0).

Note

Preference is given to runnable tasks. The sleep fallback allows the kernel to identify any task even when all are currently sleeping.

Implements stk::ITaskSwitchStrategy.

Definition at line 138 of file stk_strategy_rrobin.h.

    {
        STK_ASSERT(GetSize() != 0U);

        return (*(!m_tasks.IsEmpty() ? m_tasks.GetFirst() : m_sleep.GetFirst()));
    }

References GetSize(), m_sleep, m_tasks, and STK_ASSERT.

Here is the call graph for this function:

GetNext()

IKernelTask * stk::SwitchStrategyRoundRobin::GetNext ( )

inlineoverridevirtual

Advance cursor and return the next runnable task.

Returns

Pointer to the next task in m_tasks after the cursor position, or nullptr if m_tasks is empty (no runnable tasks — kernel will sleep).

Note

The cursor (m_prev) is updated to the returned task on each call. Because m_tasks is a closed-loop list the cursor wraps automatically from the last task back to the first, producing continuous round-robin rotation.

If the cursor itself is nullptr (all tasks were sleeping and none have woken), the method returns nullptr immediately without touching m_prev.

Implements stk::ITaskSwitchStrategy.

Definition at line 119 of file stk_strategy_rrobin.h.

    {
        IKernelTask *next = m_prev;

        if (next != nullptr)
        {
            next    = (*next->GetNext());
            m_prev = next;
        }

        return next;
    }

References stk::util::DListEntry< T, TClosedLoop >::GetNext(), and m_prev.

Here is the call graph for this function:

GetSize()

size_t stk::SwitchStrategyRoundRobin::GetSize ( ) const

inlineoverridevirtual

Get total number of tasks managed by this strategy.

Returns

Sum of tasks in m_tasks (runnable) and m_sleep (sleeping).

Implements stk::ITaskSwitchStrategy.

Definition at line 148 of file stk_strategy_rrobin.h.

    {
        return m_tasks.GetSize() + m_sleep.GetSize();
    }

References m_sleep, and m_tasks.

Referenced by GetFirst(), and RemoveTask().

Here is the caller graph for this function:

OnTaskDeadlineMissed()

virtual bool stk::ITaskSwitchStrategy::OnTaskDeadlineMissed ( IKernelTask * task )

inlinevirtualinherited

Notification that a task has exceeded its HRT deadline; returns whether the strategy can recover without a hard fault.

Parameters

[in]

task

The task whose deadline was missed. Must not be nullptr.

Returns

true — the strategy has absorbed the overrun (e.g. by escalating its scheduling mode): the kernel must not call HrtHardFailDeadline() for this tick. false — the strategy cannot recover: the kernel must call HrtHardFailDeadline() as normal.

Note

Budget Overrun API. Called by the kernel from UpdateTaskState() within a tick, after GetNext() has already been called for that tick. Only invoked when DEADLINE_MISSED_API == 1 in the concrete strategy's EConfig. Strategies that set DEADLINE_MISSED_API = 0 do not need to implement this method; the kernel will not call it and will proceed directly to HrtHardFailDeadline().

Returning true carries no implicit side-effects on task sleep state or duration counters — normal tick-driven scheduling remains responsible for those. This call only communicates "do not hard-fault this tick."

The base implementation returns false (unrecoverable), which is the correct default for strategies that do not implement overrun recovery.

Definition at line 1371 of file stk_common.h.

    {
        STK_UNUSED(task);
        return false;
    }

References STK_UNUSED.

OnTaskSleep()

void stk::SwitchStrategyRoundRobin::OnTaskSleep ( IKernelTask * task )

inlineoverridevirtual

Notification that a task has entered the sleeping state.

Parameters

[in]

task

The task that is now sleeping. Must be in m_tasks (asserted).

Note

Moves the task from m_tasks to m_sleep via RemoveActive(), which also updates the cursor so GetNext() continues correctly.

Implements stk::ITaskSwitchStrategy.

Definition at line 158 of file stk_strategy_rrobin.h.

    {
        STK_ASSERT(task != nullptr);
        STK_ASSERT(task->IsSleeping());
        STK_ASSERT(task->GetHead() == &m_tasks);

        RemoveActive(task);
        m_sleep.LinkBack(task);
    }

References stk::util::DListEntry< T, TClosedLoop >::GetHead(), stk::IKernelTask::IsSleeping(), m_sleep, m_tasks, RemoveActive(), and STK_ASSERT.

Here is the call graph for this function:

OnTaskWake()

void stk::SwitchStrategyRoundRobin::OnTaskWake ( IKernelTask * task )

inlineoverridevirtual

Notification that a task has become runnable again.

Parameters

[in]

task

The task that woke up. Must be in m_sleep (asserted).

Note

Moves the task from m_sleep to m_tasks via AddActive(), which also restores the cursor if it was null (i.e. this is the first runnable task after a period where all tasks were sleeping).

Implements stk::ITaskSwitchStrategy.

Definition at line 174 of file stk_strategy_rrobin.h.

    {
        STK_ASSERT(task != nullptr);
        STK_ASSERT(!task->IsSleeping());
        STK_ASSERT(task->GetHead() == &m_sleep);

        m_sleep.Unlink(task);
        AddActive(task);
    }

References AddActive(), stk::util::DListEntry< T, TClosedLoop >::GetHead(), stk::IKernelTask::IsSleeping(), m_sleep, and STK_ASSERT.

Here is the call graph for this function:

OnTaskWeightChange()

virtual void stk::ITaskSwitchStrategy::OnTaskWeightChange ( IKernelTask * task, Weight old_weight )

inlinevirtualinherited

Notification that a runnable task's scheduling weight has changed.

Parameters

[in]	task	The task whose weight was just updated via SetWeight().
[in]	old_weight	The previous weight of this task (required to remove it from the priority list belonging to that weight).

Note

Called only for tasks that are currently in the runnable set (not sleeping). The strategy must relink the task to reflect its new weight. For strategies with WEIGHT_API = 0 this is a no-op. For SwitchStrategyFixedPriority it moves the task from its old priority-level list to the new one and updates m_ready_bitmap.

Called from within a ScopedCriticalSection.

Reimplemented in stk::SwitchStrategyFixedPriority< MAX_PRIORITIES >, and stk::SwitchStrategyFixedPriority< 32 >.

Definition at line 1389 of file stk_common.h.

    {
        STK_UNUSED(task);
        STK_UNUSED(old_weight);
    }

References STK_UNUSED.

RemoveActive()

void stk::SwitchStrategyRoundRobin::RemoveActive ( IKernelTask * task )

inlineprotected

Remove a task from m_tasks and update the cursor.

Parameters

[in]

task

Runnable task to remove.

Note

Cursor update algorithm: the cursor must be repositioned so that the next call to GetNext() returns the task that would have followed the removed one.

• Capture next = task->GetNext() (the successor in the closed-loop list) before unlinking, while the list links are still valid.
• After unlinking, if next != task (i.e. other tasks remain), set m_prev = next->GetPrev(). GetNext() will then advance from m_prev to next, preserving the round-robin sequence without skipping a task.
• If next == task the removed task was the only element; set m_prev to nullptr so GetNext() returns nullptr and the kernel sleeps.

Definition at line 217 of file stk_strategy_rrobin.h.

    {
        IKernelTask *const next = (*task->GetNext());

        m_tasks.Unlink(task);

        // update pointer: set to previous task so that GetNext() could return next,
        // if there are no tasks left GetNext() will return nullptr causing a sleep
        // state for the kernel
        if (next != task)
        {
            m_prev = (*next->GetPrev());
        }
        else
        {
            m_prev = nullptr;
        }
    }

References stk::util::DListEntry< T, TClosedLoop >::GetNext(), stk::util::DListEntry< T, TClosedLoop >::GetPrev(), m_prev, and m_tasks.

Referenced by OnTaskSleep(), and RemoveTask().

Here is the call graph for this function:

Here is the caller graph for this function:

RemoveTask()

void stk::SwitchStrategyRoundRobin::RemoveTask ( IKernelTask * task )

inlineoverridevirtual

Remove task from whichever list it currently occupies.

Parameters

[in]

task

Task to remove. Must not be nullptr and must belong to either m_tasks or m_sleep (asserted).

Note

If the task is in m_tasks, delegates to RemoveActive() which also updates the cursor. If the task is in m_sleep, simply unlinks it.

Implements stk::ITaskSwitchStrategy.

Definition at line 94 of file stk_strategy_rrobin.h.

    {
        STK_ASSERT(task != nullptr);
        STK_ASSERT(GetSize() != 0);
        STK_ASSERT((task->GetHead() == &m_tasks) || (task->GetHead() == &m_sleep));

        if (task->GetHead() == &m_tasks)
        {
            RemoveActive(task);
        }
        else
        {
            m_sleep.Unlink(task);
        }
    }

References stk::util::DListEntry< T, TClosedLoop >::GetHead(), GetSize(), m_sleep, m_tasks, RemoveActive(), and STK_ASSERT.

Here is the call graph for this function:

STK_NONCOPYABLE_CLASS()

stk::SwitchStrategyRoundRobin::STK_NONCOPYABLE_CLASS ( SwitchStrategyRoundRobin )

protected

References SwitchStrategyRoundRobin().

Here is the call graph for this function:

Member Data Documentation

m_prev

IKernelTask* stk::SwitchStrategyRoundRobin::m_prev

protected

Iterator cursor: the most recently scheduled task, or nullptr when no runnable tasks exist. GetNext() advances from this position.

Definition at line 238 of file stk_strategy_rrobin.h.

Referenced by AddActive(), AddTask(), GetNext(), RemoveActive(), and SwitchStrategyRoundRobin().

m_sleep

IKernelTask::ListHeadType stk::SwitchStrategyRoundRobin::m_sleep

protected

Sleeping (blocked) tasks not eligible for scheduling.

Definition at line 237 of file stk_strategy_rrobin.h.

Referenced by GetFirst(), GetSize(), OnTaskSleep(), OnTaskWake(), RemoveTask(), and SwitchStrategyRoundRobin().

m_tasks

IKernelTask::ListHeadType stk::SwitchStrategyRoundRobin::m_tasks

protected

Runnable tasks eligible for scheduling.

Definition at line 236 of file stk_strategy_rrobin.h.

Referenced by AddActive(), AddTask(), GetFirst(), GetSize(), OnTaskSleep(), RemoveActive(), RemoveTask(), and SwitchStrategyRoundRobin().

---

The documentation for this class was generated from the following file:

• stk_strategy_rrobin.h
